Schneider Electric SA

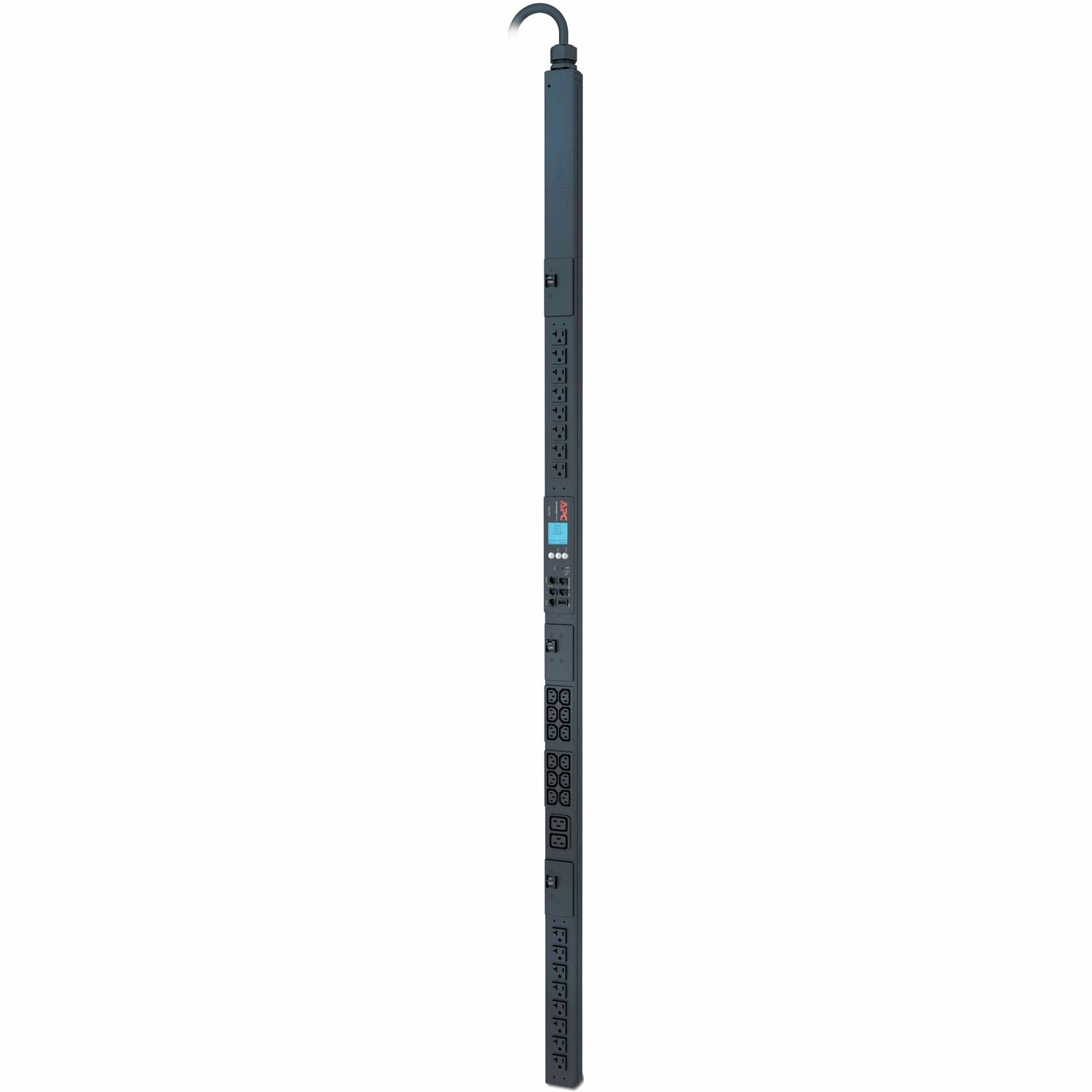

APC by Schneider Electric Metered Rack PDU

Item #: APWAP8870
$1,334.99 / Each
Ships in 6-10 Bus Days
Non Returnable Non Returnable
Special Order Item Special Order Item
Shippable Product Shippable Product
Metered - NEMA L14-30P - 12 x IEC 60320 C13, 16 x NEMA 5-20R, 2 x IEC 60320 C19 - 120 V, 208 V - 5760 W - Circuit Protection, Overload Protection - 9.84 ft Cord Length - 0U - Vertical - Rack-mountable - Tower

  • Meters power to enable optimal energy and protect circuits
  • Fitted with multiple outlets for distribution of electrical power
  • LCD to monitor current, power and voltage measurements
  • Uses 6' long power cord to easily power
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8870
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
Metered Rack PDU
Marketing Information

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency

Packaged Quantity
1 Each
Product Type
PDU
Catalog
General Line (consumer) Catalog
Catalog Page
NEW
Technical Information
PDU Type
Metered
Plug/Connector Type
NEMA L14-30P
Receptacle Type
  • NEMA 5-20R
  • IEC 60320 C19
  • IEC 60320 C13
Receptacle Detail
  • 12 x IEC 60320 C13
  • 16 x NEMA 5-20R
  • 2 x IEC 60320 C19
Protection Type
  • Circuit Protection
  • Overload Protection
Power Description
Input Voltage
  • 120 V
  • 208 V
Input Voltage Range
120 V AC - 230 V AC
Output Voltage
120 V AC
Power Rating (VA)
5760 VA
Input Current
30 A
Circuit Breaker
Yes
Management
Management
  • Web
  • SNMP
  • Telnet
Physical Characteristics
Color Family
Black
Product Color
Black
Mounting Orientation
Vertical
Mounting Preference
No Preference
Mount Type
Rack-mountable
Placement
Side
Form Factor
Tower
Rack Height
0U
Number of Cord/Cable
1
Cord Length
9.84 ft
Height
70.5"
Width
2.2"
Depth
1.7"
Weight (Approximate)
14.07 lb
Miscellaneous
For Country/Region
United States
Package Contents
  • Metered Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Certifications & Standards
    cUL Listed|UL Listed
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    REACH free of SVHC
    Yes
    Mercury Free
    Yes
    Lead Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8870_ROHS_DECLARATION&p_FileName=AP8870KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134899&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134899&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712014_EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712014_EN
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    2 Year
