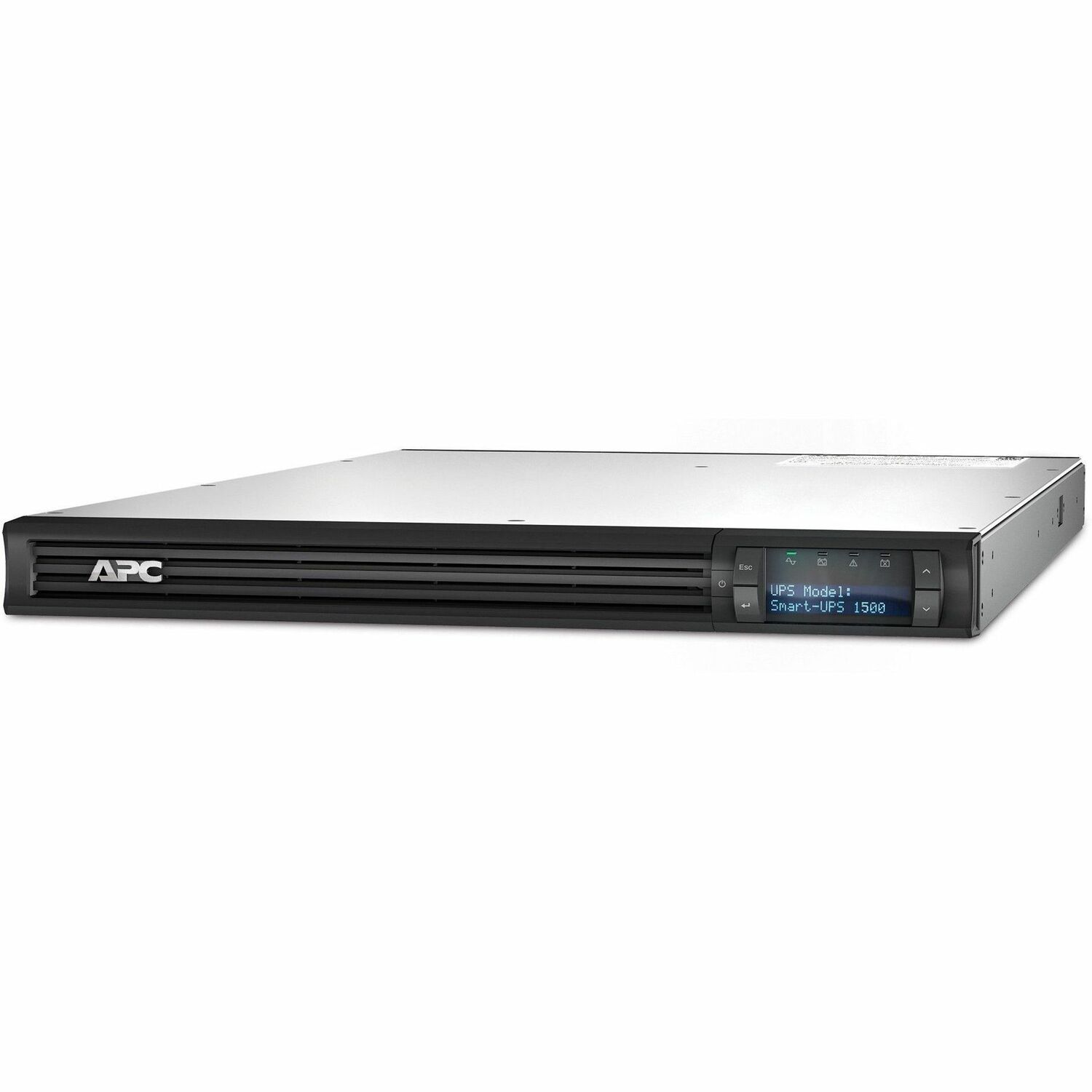

APC by Schneider Electric Smart-UPS 1500VA LCD RM 1U 230V

Item #: APWSMT1500RMI1U
Thumbnail image 1 of 4
Thumbnail image 2 of 4
Thumbnail image 3 of 4
Thumbnail image 4 of 4
APWSMT1500RMI1U APWSMT1500RMI1U APWSMT1500RMI1U APWSMT1500RMI1U
Login for Pricing
List Price: $2,109.99 / Each
Packaging: 1 Each
Ships 3-5 Business Days
High Resolution
Hi - Res
User Manual
User Manual
Non Returnable Non Returnable
Special Order Item Special Order Item
1U Rack-mountable - 4 Hour Recharge - 5 Minute Stand-by - 230 V Input - 230 V AC Output - Sine Wave - Serial Port - USB - 2 x IEC Jumper, 4 x IEC 320-C13 Receptacle(s) - 6 x Battery/Surge Outlet
  • 1500VA/1000W line interactive pure sine wave 1U rackmount UPS
  • Ideal for servers, storage, network closets, business VoIP and retail POS
  • Automatic Voltage Regulation helps correct utility voltage
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMT1500RMI1U
Manufacturer Website Address
https://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
SMT
Product Name
Smart-UPS 1500VA LCD RM 1U 230V
Marketing Information
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4 IEC 320 C13 outlets, and 2 IEC jumper cables. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Packaged Quantity
1 Each
Product Type
Line-interactive UPS
Catalog
General Line (consumer) Catalog
Catalog Page
SPC
Technical Information
Plug/Connector Type
IEC 320-C14
Receptacle Type
IEC 60320 C13
Receptacle Detail
  • 2 x IEC Jumper
  • 4 x IEC 320-C13
Number of Battery & Surge Outlets
6
Protection Type
  • Surge
  • Spike
  • Lightning
Cord Length
8 ft
Power Description
Load Capacity (VA)
1500 VA
Load Capacity (Watt)
1000 W
Input Voltage
230 V
Input Current
12 A
Output Voltage
230 V AC
Waveform Type
Sine Wave
Surge Energy Rating
540 J
Circuit Breaker
Yes
Management
Alarm
  • On Battery
  • Low Battery
  • Configurable Delay
Interfaces/Ports
Serial Port
Yes
Network (RJ-45)
Yes
USB
Yes
Total Number of Expansion Slots
1
Battery Information
Battery Characteristics
Spill-proof, Maintenance-free
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5 Minute
Backup/Run Time (Half Load)
17 Minute
Typical Battery Recharge Time
4 Hour
Hot Swappable
Yes
Environmental Conditions
Maximum Operating Temperature
113°F (45°C)
Sound Emission (A-Weighted)
46 dB(A)
Thermal Dissipation
34 W
Physical Characteristics
Color Family
Black
Product Color
Black
Height
1.7"
Width
17"
Depth
26.2"
Rack Height
1U
Form Factor
Rack-mountable
Mounting Preference
Lower
Mounting Location
Front
Weight (Approximate)
53.11 lb
Miscellaneous
For Country/Region
United States
Package Contents
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack Mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Warranty card
    • Certifications & Standards
    CE|EAC|RCM|VDE|UK PSTI
    Optimized Energy Efficiency
    Yes
    Product Take Back Program
    Yes
    Mercury Free
    Yes
    RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RMI1U_ROHS_DECLARATION&p_FileName=SMT1500RMI1UKIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=384166907&lang=en-us
    EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=384166907&lang=en-us
    Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612028_EN
    End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612028_EN
    REACH free of SVHC
    No
    WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Environmentally Friendly
    Yes
    Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
    3 Year
